Convert Marker Placement To Points (Cartography Tools)

Summary

Creates points from the markers of a marker placement in a symbolized polygon feature.

Illustration

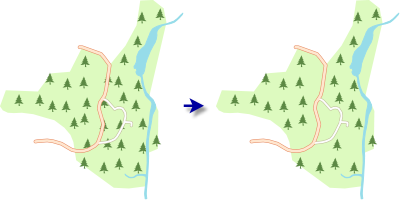

Convert Marker Placement To Points tool illustration

Marker symbols placed inside polygons are converted to point features. Points can be displaced to ensure a minimum distance is preserved between markers and can be removed to avoid conflict with boundaries or barrier features.

Usage

  • This tool assesses graphic conflicts of symbolized features to determine which markers will be included in the output. The symbology extent and the reference scale are both used. Run this tool only after you finalize the appearance of the symbols and ensure that the reference scale corresponds to the final intended output scale.

  • The default coordinate system of the output is the same as the current map view. To use a different coordinate system, use the Cartographic Coordinate System environment setting. When the tool is run in a scripting environment without an active map, the coordinate system of the input features will be used.

  • Only Single Symbol and Unique Values symbology are supported on the input layer. Attribute mapping settings saved in the input layer will be honored.

  • When the Keep At Least One Marker parameter is specified, a log file will be created that lists the input features for which a single marker was created that would otherwise have been omitted. The location of the log file is included in the geoprocessing message details.

  • Points will be created for every supported marker layer in an input symbol. To ensure that complex, multilayer markers are treated as a single entity and created as a single point in the output, first create the symbol as a point symbol and save it to a style. Then, on the Layers tab in the Symbology pane, use the Style button in the Appearance settings to set the marker symbol from the style.

  • The Displacement Method and Minimum Marker Distance parameters are available when at least one marker layer uses a random placement. Use these parameters to resolve conflicts between overlapping markers and to preserve a minimum distance between them. The Displace apart option will move markers away from each other until they reach the minimum distance and will remove markers if necessary to avoid conflicts. The Displace toward grid option will move markers until they either reach the minimum distance apart or reach their original grid placement. No markers will be removed with the Displace toward grid option.

Parameters

Label Explanation Data type

Input Layer

A polygon layer symbolized with a marker placement.

Layer

Output Feature Class

A point feature class containing points created from markers in the input layer's marker placement settings. The points will be added to the active map as a layer symbolized with a unique value renderer using symbols from the input.

Feature Class

Create Multipoints

(Optional)

Specifies whether output point features will be multipoint.

  • Checked—A multipoint feature will be created for the markers in each input polygon. This is the default.

  • Unchecked—A point feature will be created for each marker.

Boolean

Boundary Option

(Optional)

Specifies whether output points will be created for input markers that cross polygon boundaries.

  • May cross boundary—Output points will be created for input markers that cross polygon boundaries. This is the default.

  • Fixed distance—Output points will not be created for input markers that are within the distance of polygon boundaries specified by the Boundary Distance parameter.

  • Value from field—Output points will not be created for input markers that are within the distance of polygon boundaries specified by the Boundary Distance Field parameter.

String

Boundary Distance

(Optional)

The minimum distance between the output point symbols and the polygon boundaries. This parameter is applied only when the Boundary Option parameter is set to Fixed distance. The default value is 0.

Double

Boundary Distance Field

(Optional)

A numeric field from the input polygons that will be used to determine the boundary distance. This parameter is applied only when the Boundary Option parameter is set to Value from field.

Field

Boundary Distance Unit

(Optional)

Specifies the linear unit that will be used for boundary distance values.

  • Kilometers—The unit will be kilometers.

  • Meters—The unit will be meters.

  • Decimeters—The unit will be decimeters.

  • Centimeters—The unit will be centimeters.

  • Millimeters—The unit will be millimeters.

  • Nautical Miles—The unit will be nautical miles.

  • Statute Miles—The unit will be statute miles.

  • Yards—The unit will be yards.

  • Feet—The unit will be feet.

  • US Survey Feet—The unit will be US survey feet.

  • Inches—The unit will be inches.

  • Degrees—The unit will be degrees

  • Points—The unit will be points. This is the default.

String

Input Barrier Layers

(Optional)

The layers containing points, lines, or polygon features that are conflict barriers for input markers. Markers that conflict with barriers will not be created. The symbology of the barrier layers will be considered.

Value table columns:

  • Barrier Layer—A layer containing points, lines, or polygon features.

  • Barrier Distance—A numeric value specifying the minimum distance between markers and the barrier. This will be ignored if the barrier distance field value is set. The default value is 0.

  • Barrier Distance Field—A numerical field from the barrier layer that will be used as the barrier distance. This will override the barrier distance value. The default value is none.

  • Barrier Distance Unit—The linear unit that will be used for barrier distance values.

    • Kilometers—The unit will be kilometers.

    • Meters—The unit will be meters.

    • Decimeters—The unit will be decimeters.

    • Centimeters—The unit will be centimeters.

    • Millimeters—The unit will be millimeters.

    • Nautical Miles—The unit will be nautical miles.

    • Statute Miles—The unit will be statute miles.

    • Yards—The unit will be yards.

    • Feet—The unit will be feet.

    • Inches—The unit will be inches.

    • Degrees—The unit will be degrees.

    • Points—The unit will be points. This is the default.

Value Table

Keep At Least One Marker

(Optional)

Specifies whether a single marker will be created for input polygons when all markers conflict with boundaries or barriers.

  • Checked—One marker will be created for input polygons when all markers conflict with boundaries or barriers.

  • Unchecked—No markers will be created for input polygons when all markers conflict with boundaries or barriers. This is the default.

Boolean

Displacement Method

(Optional)

Specifies the displacement method that will be used to move markers that are too close to each other. This parameter is applied only when markers are positioned randomly inside the polygons.

  • Do not displace—Markers will not be displaced. This is the default.

  • Displace toward grid—Conflicting markers will be moved toward their original regular grid points.

  • Displace apart—Conflicting markers will be moved away from each other.

String

Minimum Marker Distance

(Optional)

The minimum distance between individual markers. This parameter is applied only when markers are positioned randomly inside the polygons. The default value is 0.

Linear Unit

Environments

Cartographic Coordinate System, Reference Scale

Licensing information

  • Basic: No
  • Standard: No
  • Advanced: Yes
