Create Territory Level Feature Classes (Territory Design Tools)

Summary

Creates feature classes for a specified territory level.

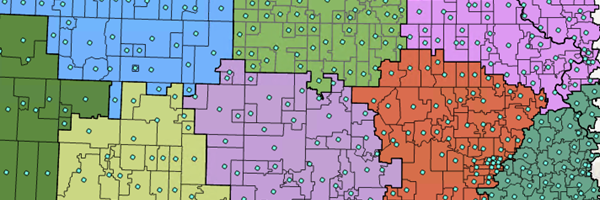

The output point feature classes represent the centers of the features at the base or territory level.

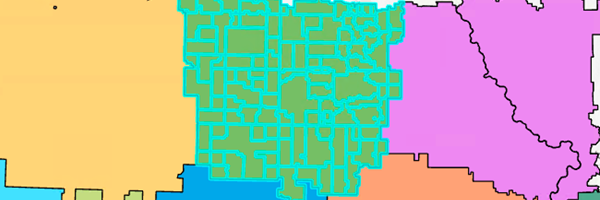

The output polygon feature classes represent the boundaries (perimeters) of the features at the base or territory level.
The base level can only contain base boundaries and base centers.
A Thiessen polygon will be created for the base boundary feature class if a point-based solution is created.
The default feature class for a polygon solution is Base Territory Boundaries.
The default feature class for a point solution is Base Territory Centers.

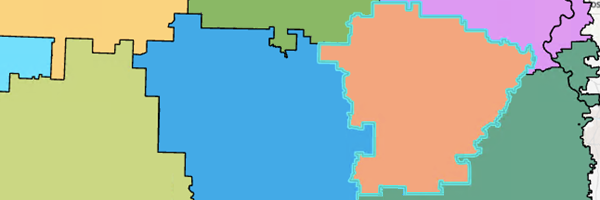

The polygon feature classes represent boundaries (perimeters) of the features in territory level.

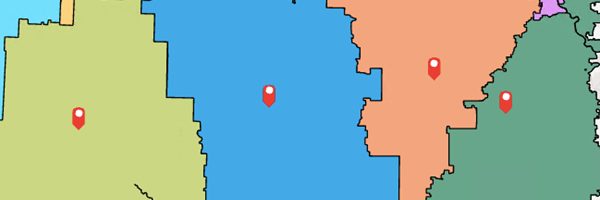

The point feature classes represent territory centers.

Label	Explanation	Data type
Input Territory Solution	The Territory Design solution layer that will be used in the analysis.	Group Layer; Feature Dataset; String
Level	The level to which the feature classes will be added.	String
Feature Classes	Specifies the feature classes that will be created at the specified Level parameter value. Territory Boundaries—Polygon features that represent the territory boundaries will be created. Territory Centers—Point features that represent the territory centers will be created. Base Boundaries—Polygon features that represent the base boundaries will be created. Base Centers—Point features that represent the base centers will be created. Line Barriers—Line features that restrict traversal across a line will be created. Seed Points—Point features from which territories are derived will be created. Restricted Areas—Polygon features that prevent the creation of territories will be created. Polygon Barriers—Polygon features that restrict traversal across a polygon will be created.	String

Label	Explanation	Data type
Updated Territory Solution	The updated territory solution.	Group Layer

arcpy.td.CreateTerritoryLevelFeatureClasses(in_territory_solution, level, feature_classes)

Name	Explanation	Data type
in_territory_solution	The Territory Design solution layer that will be used in the analysis.	Group Layer; Feature Dataset; String
level	The level to which the feature classes will be added.	String
feature_classes [feature_classes,...]	Specifies the feature classes that will be created at the specified `level` parameter value. `TERRITORY_BOUNDARIES`—Polygon features that represent the territory boundaries will be created. `TERRITORY_CENTERS`—Point features that represent the territory centers will be created. `BASE_BOUNDARIES`—Polygon features that represent the base boundaries will be created. `BASE_CENTERS`—Point features that represent the base centers will be created. `LINE_BARRIERS`—Line features that restrict traversal across a line will be created. `SEED_POINTS`—Point features from which territories are derived will be created. `RESTRICTED_AREAS`—Polygon features that prevent the creation of territories will be created. `POLYGON_BARRIERS`—Polygon features that restrict traversal across a polygon will be created.	String

Name	Explanation	Data type
out_territory_solution	The updated territory solution.	Group Layer

CreateTerritoryLevelFeatureClasses example (Python window)

The following Python window script demonstrates how to use the CreateTerritoryLevelFeatureClasses function.

import arcpy
arcpy.td.CreateTerritoryLevelFeatureClasses("TerritoryDesignSolution", "Territories[1]", "TERRITORY_BOUNDARIES;TERRITORY_CENTERS")
