ConstructPolygonSymbolWithPenInkStipple Method (SymbolFactory)

In This Topic

Constructs a polygon symbol in the specified color representing a pen and ink stipple effect. See %Pen and Ink styles:https://www.esri.com/arcgis-blog/products/arcgis-pro/mapping/please-steal-this-pen-and-ink-style%

Syntax

Visual Basic (Declaration)
C#

Public Function ConstructPolygonSymbolWithPenInkStipple( _
   ByVal color As CIMColor, _
   ByVal includeBorder As Boolean _
) As CIMPolygonSymbol

public CIMPolygonSymbol ConstructPolygonSymbolWithPenInkStipple(
   CIMColor color,
   bool includeBorder
)

Parameters

color: ArcGIS.Core.CIM.CIMColor
includeBorder: A boolean indicating if border strokes are to be included in the symbol.

Return Value

ArcGIS.Core.CIM.CIMPolygonSymbol

Example

Pen and Ink: Stipple

/// <summary>
/// Constructs a polygon symbol in the specified color representing a pen and ink stipple effect. See https://www.esri.com/arcgis-blog/products/arcgis-pro/mapping/please-steal-this-pen-and-ink-style/

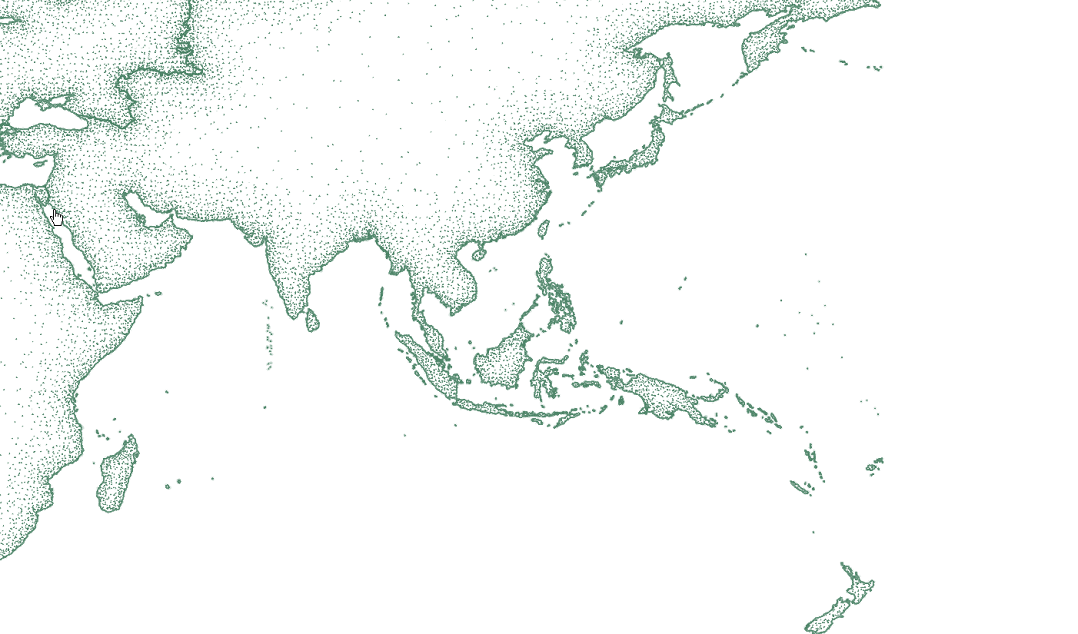

/// ![polygonStipple.png](https://ArcGIS.github.io/arcgis-pro-sdk/images/Symbology/polygonStipple.png)
/// </summary>
{
  //Note: Run withing QueuedTask
  //Stipple pen and ink
  var penInkRipple = SymbolFactory.Instance.ConstructPolygonSymbolWithPenInkStipple(CIMColor.CreateRGBColor(78, 133, 105), true);
  CIMPolygonSymbol penInkStipple = penInkRipple;
  //To apply the symbol to a polygon feature layer
  //var renderer = theLayer.GetRenderer() as CIMSimpleRenderer;
  //renderer.Symbol = penInkStipple.MakeSymbolReference();
  //theLayer.SetRenderer(renderer);
}

Requirements

Target Platforms: Windows 11 Home, Pro, Enterprise (64 bit)

ArcGIS Pro version: 3.1 or higher.

Reference

SymbolFactory Class
SymbolFactory Members
