    KnowledgeGraph Class
    In This Topic
    Represents a Knowledge Graph datastore.

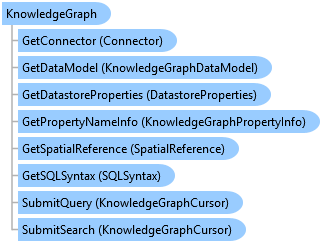

    Object Model
    KnowledgeGraph ClassConnector ClassKnowledgeGraphDataModel ClassDatastoreProperties ClassKnowledgeGraphPropertyInfo ClassSpatialReference ClassSQLSyntax ClassKnowledgeGraphCursor ClassKnowledgeGraphCursor Class
    Syntax
    Public NotInheritable Class KnowledgeGraph
       Inherits ArcGIS.Core.Data.Datastore
       Implements System.IDisposable
    public sealed class KnowledgeGraph : ArcGIS.Core.Data.Datastore, System.IDisposable
    Example
    Opening a Connection to a KnowledgeGraph
    {
      await QueuedTask.Run(() =>
      {
        //Create a connection properties
        var kg_props =
            new KnowledgeGraphConnectionProperties(new Uri(url));
        try
        {
          //Open a connection
          using (var kg = new KnowledgeGraph(kg_props))
          {
            //TODO...use the KnowledgeGraph
          }
        }
        catch (GeodatabaseNotFoundOrOpenedException ex)
        {
          System.Diagnostics.Debug.WriteLine(ex.ToString());
        }
      });
    }
    Opening a Connection to a File KnowledgeGraph
    {
      await QueuedTask.Run(() =>
      {
        //Starting at 3.7, users can connect to a _file_ knowledge graph
        //The extension for a file kg is ".knowledgegraph"
        // Any path you want
        string kgPath = @"C:\Data\KG\Filebased_KG";
        string kgFileName = @"Test_File_KG.knowledgegraph";

        var kg_full_path = System.IO.Path.Combine(kgPath, kgFileName);

        var kg_props = new KnowledgeGraphConnectionProperties(new Uri(kg_full_path));
        try
        {
          //Open a connection
          using (var kg = new KnowledgeGraph(kg_props))
          {
            //TODO...use the File KnowledgeGraph
            var i = 0;
            //Get the featureclass definitions from the KG datastore
            var fc_defs = kg.GetDefinitions<FeatureClassDefinition>();
            //For each feature class definition, get the corresponding
            //feature class. Note: The name of the feature class will match
            //the name of its corresponding KnowledgeGraph named object type
            //in the KnowledgeGraph graph data model
            foreach (var fc_def in fc_defs)
            {
              var fc_name = fc_def.GetName();
              System.Diagnostics.Debug.WriteLine($"FeatureClass[{i++}] {fc_name}");
            }
          }
        }
        catch (GeodatabaseNotFoundOrOpenedException ex)
        {
          System.Diagnostics.Debug.WriteLine(ex.ToString());
        }
      });
    }
    Getting a Connection from a KnowledgeGraphLayer
    {
      //var kgLayer = MapView.Active.Map.GetLayersAsFlattenedList()
      //			.OfType<KnowledgeGraphLayer>().FirstOrDefault();

      await QueuedTask.Run(() =>
      {
        // use the layer directly
        KnowledgeGraph datastore = kgLayer.GetDatastore();

        // or you can use any of the sub items since
        //KnowledgeGraphLayer is a composite layer - get the first
        // child feature layer or standalone table
        var featlayer = kgLayer?.GetLayersAsFlattenedList()?
                        .OfType<FeatureLayer>()?.FirstOrDefault();
        KnowledgeGraph kg = null;
        if (featlayer != null)
        {
          using (var fc = featlayer.GetFeatureClass())
            kg = fc.GetDatastore() as KnowledgeGraph;
          //TODO use KnowledgeGraph
        }
        else
        {
          //try standalone table
          var stbl = kgLayer?.GetStandaloneTablesAsFlattenedList()?
                          .FirstOrDefault();
          if (stbl != null)
          {
            using (var tbl = stbl.GetTable())
              kg = tbl.GetDatastore() as KnowledgeGraph;
            //TODO use KnowledgeGraph
          }
        }
      });
    }
    Inheritance Hierarchy

    System.Object
       ArcGIS.Core.CoreObjectsBase
          ArcGIS.Core.Data.Datastore
             ArcGIS.Core.Data.Knowledge.KnowledgeGraph

    Requirements

    Target Platforms: Windows 11 Home, Pro, Enterprise (64 bit)

    ArcGIS Pro version: 3.2 or higher.
