Rotate Aviation Features (Aviation Tools)

Résumé

Aligns features to a grid or to the page.

Using this tool, you can automate the rotation of point and annotation features on a chart to make them easier to read.

Utilisation

  • Target point layers must have a CARTOANGLE_VAL field, which will be calculated by the tool to set the desired rotation. You can also manually edit the field to change the rotation of an aviation feature.

    Remarque :

    To view the tool results, you must set the Symbology value for the target point layer.

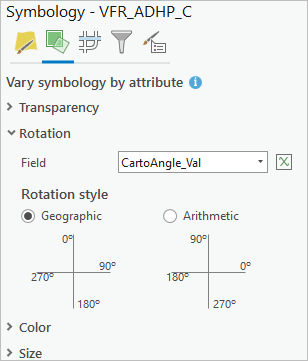

    On the Vary symbology by attribute tab , expand Rotation, and set Field to CartoAngle_Val, and set Rotation style to Geographic.

    Vary symbology by attribute tab

  • Target annotation layers will be rotated by calculating their Angle field (the default) or the angle information in their Element BLOB field.

  • The Input Map parameter value must have a projected coordinate system.

Paramètres

Etiqueter Explication Type de données

Input Map

The map containing aviation features.

Map

Target Point or Annotation Layers

The point or annotation feature layers that will be rotated.

String

Rotate Option

(Facultatif)

Specifies how the features will be rotated.

  • Rotate to the map's grid—The features will be rotated to the map's grid. This is the default.

  • Rotate to the top of the page—The features will be rotated to the top of the page.

  • Rotate to the left of the page—The features will be rotated to the left side of the page.

  • Rotate to the bottom of the page—The features will be rotated to the bottom of the page.

  • Rotate to the right of the page—The features will be rotated to the right side of the page.

String

Sortie dérivée

Etiqueter Explication Type de données

Updated Layers

The feature layer with updated rotation values.

Feature Layer

Environnements

Cet outil n’utilise pas d’environnement de géotraitement.

Informations de licence

  • Basic: No
  • Standard: Requires ArcGIS Aviation Charting
  • Advanced: Requires ArcGIS Aviation Charting
