GetPatchNormal Method

In This Topic

Gets the normal coordinate for the specified patch (part) at the point index.

Syntax

Visual Basic (Declaration)
C#

Public Function GetPatchNormal( _
   ByVal patchIndex As Integer, _
   ByVal pointIndex As Integer _
) As Coordinate3D

public Coordinate3D GetPatchNormal(
   int patchIndex,
   int pointIndex
)

Parameters

patchIndex: The index of the patch. Must be greater than or equal to zero and less than PartCount.
pointIndex: The index of the point relative to the patch. Must be greater than or equal to zero and less than the value returned from GetPatchPointCount.

Return Value

The coordinate representing the normal.

Exceptions

Exception	Description
System.ArgumentException	The patch index must be >= 0.
System.ArgumentException	The patch index must be less than the number of patches (parts) in the multipatch.
System.ArgumentException	The point index must be >= 0.
System.ArgumentException	The point index must be less than the number of points in the patch. See GetPatchPointCount
System.InvalidOperationException	This multipatch does not have normals.

Remarks

The normals of a 3D object are used for lighting. They define the direction that each face will reflect light. They are usually perpendicular to the geometry but can also be defined in other directions.

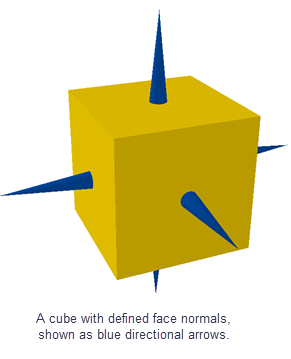

Cube with Normals

Example

Get the normal coordinate of a multipatch

{
  if (multipatch.HasNormals)
  {
    int patchIndex = 0;
    // If the multipatch has normals, then the number of normals is equal to the number of points.
    int numNormals = multipatch.GetPatchPointCount(patchIndex);

    for (int pointIndex = 0; pointIndex < numNormals; pointIndex++)
    {
      Coordinate3D normal = multipatch.GetPatchNormal(patchIndex, pointIndex);

      // Do something with the normal coordinate.
    }
  }
}

Requirements

Target Platforms: Windows 11 Home, Pro, Enterprise (64 bit)

ArcGIS Pro version: 3.0 or higher.
