Generate Standard Geography Trade Areas (Business Analyst Tools)

Краткая информация

Creates trade areas based on predefined named statistical areas. This tool does not consume credits.

Иллюстрация

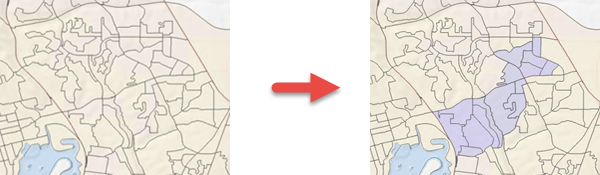

Generate Standard Geography Trade Areas tool illustration

Использование

  • Standard geographies are trade areas based on standardized administrative boundaries. In the United States, this includes layers such as states, counties, ZIP Codes, block groups, census tracts, core-based statistical areas (CBSA), designated market areas (DMA), and places. Each country dataset offers administrative boundaries that can vary. Individual trade areas are created for each unique geography, for example, each state or each ZIP Code that you select.

  • When the Input Type parameter is set to List, the maximum number of features generated is 1000.

    There is no maximum features limitation when the Input Type parameter is set to Table.

  • The table can be in any format supported by ArcGIS Pro, for example, a comma- or tab-delimited text file (.txt) or a Microsoft Excel file.

  • One layer can contain several trade areas, for example, one whole layer containing a collection of counties.

  • The list of IDs must be in a table or list format.

  • In the list format, the ID items must be separated by commas.

  • The geography ID for the entire country trade area is 01.

  • When the Input Type parameter is set to Table, the associated Geography Key Field parameter value must be a text field.

Параметры

Подпись Объяснение Тип данных

Geography Level

The geography level that will be used to define the trade area.

String

Output Feature Class

The output feature containing the trade area.

Feature Class

Input Type

(Дополнительный)

Specifies whether the geography IDs will be from a table or a list.

  • Table–The input IDs will be from a table.

  • List–The input IDs will be from a list. This is the default.

String

Geography IDs Table

(Дополнительный)

The input table with IDs that will be used to select geographies that will define the trade area.

Table View

Geography Key Field

(Дополнительный)

A field in the Geography IDs Table parameter value that identifies the records that will be included in the output.

Field

Geography IDs List

(Дополнительный)

The input list of comma-separated geography IDs.

String

Summarize Duplicate IDs

(Дополнительный)

Specifies whether duplicate fields in the table containing matching geography IDs will be summarized.

  • Отмечено–The numeric fields for all duplicate records will be summarized.

  • Не отмечено–The data of the first record will be appended. Other records will be ignored. This is the default.

Boolean

Group Field

(Дополнительный)

The field that will be used to perform a group by operation.

Field

Dissolve Output Features

(Дополнительный)

Specifies whether the output will be dissolved based on the Group Field parameter value.

  • Отмечено–The output will be dissolved.

  • Не отмечено–The output will not be dissolved. This is the default.

Boolean

Параметры среды

Current Workspace, Data Source

Информация о лицензировании

  • Basic: Requires Business Analyst
  • Standard: Requires Business Analyst
  • Advanced: Requires Business Analyst
