Split Line At Vertices (Data Management Tools)

Summary

Creates a polyline feature class by splitting input lines or polygons at their vertices.

Illustration

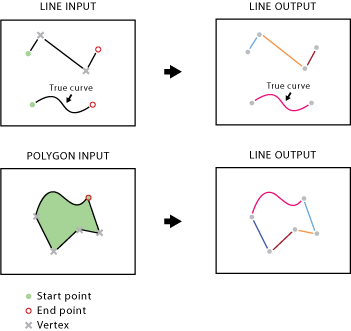

Split Lines At Vertices tool illustration

Usage

The attributes of the input features will be maintained in the output feature class. The following fields will be added to the output feature class:
- ORIG_FID—Stores the feature IDs of the input features
- ORIG_SEQ—Stores the sequence number for each output line following the order of the segments from the starting vertex of the input feature
If an input line has only two vertices, the line will be copied to the output as is. Otherwise, every segment between consecutive vertices will become a line feature in the output. The output feature class can be a much larger file, depending on the number of vertices the input features have.
A parametric (true) curve line or segment will not be densified and will remain a true curve as an output line feature. This does not apply to shapefile data.

Label	Explanation	Data type
Input Features	The input line or polygon features.	Feature Layer
Output Feature Class	The output line feature class.	Feature Class

arcpy.management.SplitLine(in_features, out_feature_class)

Name	Explanation	Data type
in_features	The input line or polygon features.	Feature Layer
out_feature_class	The output line feature class.	Feature Class

Code sample

SplitLine example 1 (Python window)

The following Python window script demonstrates how to use the SplitLine function in immediate mode.

import arcpy
arcpy.env.workspace = "C:/data"
arcpy.management.SplitLine("roads.shp", "c:/output/output.gdb/roads_split")

SplitLine example 2 (stand-alone script)

The following stand-alone script is an example of how to apply the SplitLine function in a scripting environment.

# Name: SplitLine_Example2.py
# Description: Split a bus line feature at its vertices (bus stops)
#              and find a midpoint of each new line for further analysis.

# import system modules
import arcpy

# Set environment settings
arcpy.env.workspace = "C:/data"

# Set local variables
inFeatures = "buslines.shp"
outFeatureClass = "c:/output/output.gdb/buslines_segments"
midPtsFeatureClass = "c:/output/output.gdb/buslines_segments_midPts"

# Run SplitLine to get new lines, each of which is between two bus stops
arcpy.management.SplitLine(inFeatures, outFeatureClass)

# Run FeatureVerticesToPoints to find a midpoint for every new line
arcpy.management.FeatureVerticesToPoints(outFeatureClass,
                                         midPtsFeatureClass, "MID")

# Comments: You can add attribute information, such as driving time,
#           to the midpoint feature class and display the attributes
#           as an alternative label for each line between two bus stops.

Environments

Current Workspace, Scratch Workspace, Default Output Z Value, M Resolution, M Tolerance, Output M Domain, Output Z Domain, Output Coordinate System, Extent, Output has M values, Output has Z values, XY Resolution, XY Tolerance, Z Resolution, Z Tolerance

Licensing information

Basic: No
Standard: No
Advanced: Yes
