AnnotationLayer Class
In This Topic
Represents a layer with a collection of annotation features and their visual representation and editing (when permitted).

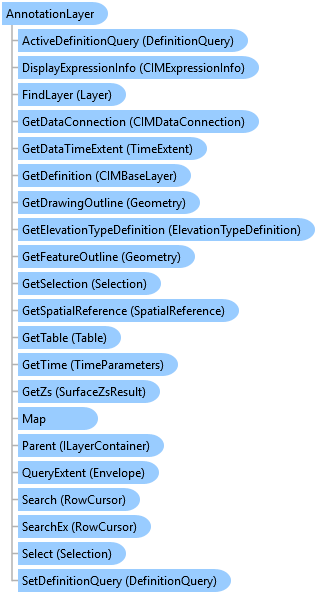

Object Model
Syntax
Public NotInheritable Class AnnotationLayer Inherits BasicFeatureLayer Implements ArcGIS.Desktop.Core.IMetadataInfo, IDisplayTable, ILayerContainer, IMetadataSource, ITableDefinitionQueries, System.ComponentModel.INotifyPropertyChanged
public sealed class AnnotationLayer : BasicFeatureLayer, ArcGIS.Desktop.Core.IMetadataInfo, IDisplayTable, ILayerContainer, IMetadataSource, ITableDefinitionQueries, System.ComponentModel.INotifyPropertyChanged
Remarks
AnnotationLayer is a composite layer with one level of sublayers. It does not have any group layer inside it.
Inheritance Hierarchy
System.Object
ArcGIS.Desktop.Framework.Contracts.PropertyChangedBase
ArcGIS.Desktop.Mapping.MapMember
ArcGIS.Desktop.Mapping.Layer
ArcGIS.Desktop.Mapping.BasicFeatureLayer
ArcGIS.Desktop.Mapping.AnnotationLayer
Requirements
Target Platforms: Windows 11 Home, Pro, Enterprise (64 bit)
ArcGIS Pro version: 3.0 or higher.
See Also
