Editar TIN (Herramientas de 3D Analyst)

Resumen

Carga datos de una o más entidades de entrada para modificar la superficie de una red irregular de triángulos (TIN) existente.

Más información sobre cómo funciona Editar TIN

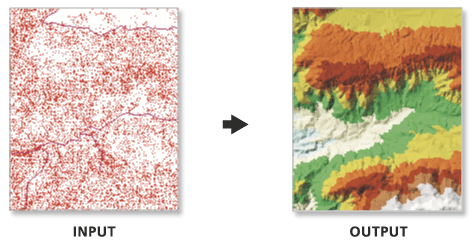

Ilustración

Uso

Esta herramienta modifica la TIN de entrada. Plantéese usar la herramienta Copiar TIN para conservar una copia de seguridad si desea conservar una versión sin modificar de la TIN de origen.
El tipo de entidad de superficie define la manera en que las entidades de entrada influirán en la definición de la superficie triangulada.
- Las entidades de punto se pueden especificar como puntos de masa, que proporcionan nodos de datos con valores z que se utilizan en la triangulación de la superficie.
- Las entidades de línea pueden especificarse como puntos de masa y líneas de corte, que representan ubicaciones a lo largo de una superficie con discontinuidades lineales en la pendiente, como líneas de cresta, líneas de costa, bordes de pavimento, huellas de edificios, etc.
- Las entidades de polígono también pueden especificarse como puntos de masa y líneas de corte, junto con entidades de recorte que definen el área de datos, entidades de reemplazo que definen regiones con valores z constantes (por ejemplo, masas de agua) y entidades de borrado que indican áreas interiores donde no existen datos.
La herramienta puede crear un TIN compuesto por muchos millones de puntos si dispone de memoria suficiente. Sin embargo, limitar el número de nodos TIN a menos de 6 millones garantizará el rendimiento de visualización y la usabilidad general. Si se necesita una superficie TIN más grande, considere la posibilidad de utilizar un dataset de terreno. El dataset de terreno ofrece una superficie TIN multirresolución que puede admitir colecciones mucho más grandes de mediciones de origen.

Etiqueta Explicación Tipo de datos

Etiqueta	Explicación	Tipo de datos
TIN de entrada	Dataset TIN que se procesará.	TIN Layer
Definición de entidad de superficie	Entidades de entrada y sus propiedades relacionadas que definen cómo se agregarán al TIN. Columnas de la tabla de valores: Input Features—The features that will be added to the TIN. Height Field—The field from the input's attribute table that will provide the elevation for its features. The z- or m-values in the `Shape` field can be used along with any numeric field. Choosing the `<None>` option will result in the feature's elevation being interpolated from its surrounding 3D measurements. Tag Field—A numeric attribute will be assigned to the TIN's data elements using values obtained from an integer field in the input feature's attribute table. Type—The input feature's role in defining the TIN surface. The available options depend on the geometry of the input features. For line- and polygon-based surface feature types, the hard and soft designations for the surface feature type impact the way the line or polygon boundary is handled when interpolating a raster surface from the TIN dataset when using natural neighbor interpolation. A hard surface feature type represents a border with a sharp discontinuity in elevation, such as the edge of a cliff, a wall, or a curb on the side of the road. A soft surface feature type represents a border where the elevation is more smoothly defined. Mass Points—Elevation measurements will be incorporated as TIN nodes. Hard Line—Breakline features will define linear discontinuities in the TIN. Soft Line—Breakline features will define linear discontinuities in the TIN. Hard Clip—Polygon features will define the data area of the TIN surface. Soft Clip—Polygon features will define the data area of the TIN surface. Hard Erase—Polygon features will define interior voids in the data. Soft Erase—Polygon features will define interior voids in the data. Hard Replace—Polygon features will define areas of constant height. Soft Replace—Polygon features will define areas of constant height. Hard Value Fill—Integer attributes will be assigned to nodes and triangle faces. Soft Value Fill—Integer attributes will be assigned to nodes and triangle faces. Use Z—Specifies whether z- or m-values will be used when the `SHAPE` field is specified as the height source. Specifying `True` indicates that z-values will be used; specifying `False` indicates that m-values will be used.	Value Table
Restringida de Delaunay (Opcional)	Especifica la técnica de triangulación que se va a utilizar a lo largo de las líneas de corte de TIN. Activado—The TIN will use constrained Delaunay triangulation, which will add each segment as a single edge. Delaunay triangulation rules are honored everywhere except along breaklines, which will not be densified. Desactivado—The TIN will use Delaunay conforming triangulation, which may densify each segment of the breaklines to produce multiple triangle edges. This is the default.	Boolean

TIN de entrada

Dataset TIN que se procesará.

TIN Layer

Definición de entidad de superficie

Entidades de entrada y sus propiedades relacionadas que definen cómo se agregarán al TIN.

Columnas de la tabla de valores:

Input Features—The features that will be added to the TIN.
Height Field—The field from the input's attribute table that will provide the elevation for its features. The z- or m-values in the Shape field can be used along with any numeric field. Choosing the <None> option will result in the feature's elevation being interpolated from its surrounding 3D measurements.
Tag Field—A numeric attribute will be assigned to the TIN's data elements using values obtained from an integer field in the input feature's attribute table.
Type—The input feature's role in defining the TIN surface. The available options depend on the geometry of the input features. For line- and polygon-based surface feature types, the hard and soft designations for the surface feature type impact the way the line or polygon boundary is handled when interpolating a raster surface from the TIN dataset when using natural neighbor interpolation. A hard surface feature type represents a border with a sharp discontinuity in elevation, such as the edge of a cliff, a wall, or a curb on the side of the road. A soft surface feature type represents a border where the elevation is more smoothly defined.
- Mass Points—Elevation measurements will be incorporated as TIN nodes.
- Hard Line—Breakline features will define linear discontinuities in the TIN.
- Soft Line—Breakline features will define linear discontinuities in the TIN.
- Hard Clip—Polygon features will define the data area of the TIN surface.
- Soft Clip—Polygon features will define the data area of the TIN surface.
- Hard Erase—Polygon features will define interior voids in the data.
- Soft Erase—Polygon features will define interior voids in the data.
- Hard Replace—Polygon features will define areas of constant height.
- Soft Replace—Polygon features will define areas of constant height.
- Hard Value Fill—Integer attributes will be assigned to nodes and triangle faces.
- Soft Value Fill—Integer attributes will be assigned to nodes and triangle faces.
Use Z—Specifies whether z- or m-values will be used when the SHAPE field is specified as the height source. Specifying True indicates that z-values will be used; specifying False indicates that m-values will be used.

Value Table

Restringida de Delaunay

(Opcional)

Especifica la técnica de triangulación que se va a utilizar a lo largo de las líneas de corte de TIN.

Activado—The TIN will use constrained Delaunay triangulation, which will add each segment as a single edge. Delaunay triangulation rules are honored everywhere except along breaklines, which will not be densified.
Desactivado—The TIN will use Delaunay conforming triangulation, which may densify each segment of the breaklines to produce multiple triangle edges. This is the default.

Boolean

Salida derivada

Etiqueta	Explicación	Tipo de datos
TIN actualizado	El TIN actualizado.	TIN Layer

arcpy.3d.EditTin(in_tin, in_features, {constrained_delaunay})

Nombre Explicación Tipo de datos

Nombre	Explicación	Tipo de datos
in_tin	Dataset TIN que se procesará.	TIN Layer
in_features [[in_features, height_field, tag_value, SF_type, use_z],...]	Entidades de entrada y sus propiedades relacionadas que definen cómo se agregarán al TIN. Columnas de la tabla de valores: `Input Features`—The features that will be added to the TIN. `Height Field`—The field from the input's attribute table that will provide the elevation for its features. The z- or m-values in the `Shape` field can be used along with any numeric field. Choosing the `<None>` option will result in the feature's elevation being interpolated from its surrounding 3D measurements. `Tag Field`—A numeric attribute will be assigned to the TIN's data elements using values obtained from an integer field in the input feature's attribute table. `Type`—The input feature's role in defining the TIN surface. The available options depend on the geometry of the input features. For line- and polygon-based surface feature types, the hard and soft designations for the surface feature type impact the way the line or polygon boundary is handled when interpolating a raster surface from the TIN dataset when using natural neighbor interpolation. A hard surface feature type represents a border with a sharp discontinuity in elevation, such as the edge of a cliff, a wall, or a curb on the side of the road. A soft surface feature type represents a border where the elevation is more smoothly defined. `Mass_Points`—Elevation measurements will be incorporated as TIN nodes. `Hard_Line`—Breakline features will define linear discontinuities in the TIN. `Soft_Line`—Breakline features will define linear discontinuities in the TIN. `Hard_Clip`—Polygon features will define the data area of the TIN surface. `Soft_Clip`—Polygon features will define the data area of the TIN surface. `Hard_Erase`—Polygon features will define interior voids in the data. `Soft_Erase`—Polygon features will define interior voids in the data. `Hard_Replace`—Polygon features will define areas of constant height. `Soft_Replace`—Polygon features will define areas of constant height. `Hardvalue_Fill`—Integer attributes will be assigned to nodes and triangle faces. `Softvalue_Fill`—Integer attributes will be assigned to nodes and triangle faces. `Use Z`—Specifies whether z- or m-values will be used when the `SHAPE` field is specified as the height source. Specifying `True` indicates that z-values will be used; specifying `False` indicates that m-values will be used.	Value Table
constrained_delaunay (Opcional)	Especifica la técnica de triangulación que se va a utilizar a lo largo de las líneas de corte de TIN. `CONSTRAINED_DELAUNAY`—The TIN will use constrained Delaunay triangulation, which will add each segment as a single edge. Delaunay triangulation rules are honored everywhere except along breaklines, which will not be densified. `DELAUNAY`—The TIN will use Delaunay conforming triangulation, which may densify each segment of the breaklines to produce multiple triangle edges. This is the default.	Boolean

in_tin

Dataset TIN que se procesará.

TIN Layer

in_features [[in_features, height_field, tag_value, SF_type, use_z],...]

Entidades de entrada y sus propiedades relacionadas que definen cómo se agregarán al TIN.

Columnas de la tabla de valores:

Input Features—The features that will be added to the TIN.
Height Field—The field from the input's attribute table that will provide the elevation for its features. The z- or m-values in the Shape field can be used along with any numeric field. Choosing the <None> option will result in the feature's elevation being interpolated from its surrounding 3D measurements.
Tag Field—A numeric attribute will be assigned to the TIN's data elements using values obtained from an integer field in the input feature's attribute table.
Type—The input feature's role in defining the TIN surface. The available options depend on the geometry of the input features. For line- and polygon-based surface feature types, the hard and soft designations for the surface feature type impact the way the line or polygon boundary is handled when interpolating a raster surface from the TIN dataset when using natural neighbor interpolation. A hard surface feature type represents a border with a sharp discontinuity in elevation, such as the edge of a cliff, a wall, or a curb on the side of the road. A soft surface feature type represents a border where the elevation is more smoothly defined.
- Mass_Points—Elevation measurements will be incorporated as TIN nodes.
- Hard_Line—Breakline features will define linear discontinuities in the TIN.
- Soft_Line—Breakline features will define linear discontinuities in the TIN.
- Hard_Clip—Polygon features will define the data area of the TIN surface.
- Soft_Clip—Polygon features will define the data area of the TIN surface.
- Hard_Erase—Polygon features will define interior voids in the data.
- Soft_Erase—Polygon features will define interior voids in the data.
- Hard_Replace—Polygon features will define areas of constant height.
- Soft_Replace—Polygon features will define areas of constant height.
- Hardvalue_Fill—Integer attributes will be assigned to nodes and triangle faces.
- Softvalue_Fill—Integer attributes will be assigned to nodes and triangle faces.
Use Z—Specifies whether z- or m-values will be used when the SHAPE field is specified as the height source. Specifying True indicates that z-values will be used; specifying False indicates that m-values will be used.

Value Table

constrained_delaunay

(Opcional)

Especifica la técnica de triangulación que se va a utilizar a lo largo de las líneas de corte de TIN.

CONSTRAINED_DELAUNAY—The TIN will use constrained Delaunay triangulation, which will add each segment as a single edge. Delaunay triangulation rules are honored everywhere except along breaklines, which will not be densified.
DELAUNAY—The TIN will use Delaunay conforming triangulation, which may densify each segment of the breaklines to produce multiple triangle edges. This is the default.

Boolean

Salida derivada

Nombre	Explicación	Tipo de datos
derived_out_tin	El TIN actualizado.	TIN Layer

Muestra de código

Ejemplo 1 de EditTin (ventana de Python)

El siguiente ejemplo muestra cómo usar esta herramienta en la ventana de Python:

arcpy.env.workspace = "C:/data"
arcpy.ddd.EditTin("my_tin", "clip_polygon.shp <None> <None> hardclip false; "\
                 "new_points.shp Shape <None> masspoints true", "Delaunay")

Ejemplo 2 de EditTin (script independiente)

El siguiente ejemplo muestra cómo usar esta herramienta en un script independiente de Python:

'''****************************************************************************
Name: EditTin Example
Description: This script demonstrates how to use the
             EditTin tool to add features to a output of the CopyTin tool.
****************************************************************************'''

# Import system modules
import arcpy

# Set environment settings
arcpy.env.workspace = "C:/data/LAS"

# Set Local Variables
origTin = "elevation"
copyTin = "elev_copy"
inFCs = [["Clip_Polygon.shp", "<None>", "<None>", "hardclip", False],
         ["new_points.shp", "Shape", "<None>", "masspoints", True]]

# Run CopyTin
arcpy.ddd.CopyTin(origTin, copyTin, "CURRENT")

# Run EditTin
arcpy.ddd.EditTin(copyTin, inFCs, Delaunay)

Entornos

Espacio de trabajo actual, Extensión

Información de licenciamiento

Basic: Requiere 3D Analyst
Standard: Requiere 3D Analyst
Avanzado: Requiere 3D Analyst
