ImageServiceLayer Class
In This Topic
Represents an image service layer.

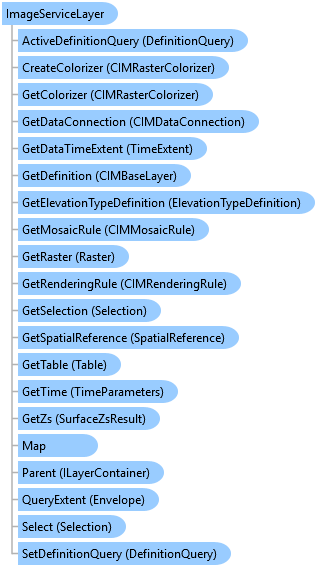

Object Model
Syntax
Public Class ImageServiceLayer Inherits BasicRasterLayer Implements ArcGIS.Desktop.Core.IMetadataInfo, IMetadataSource, ITableDefinitionQueries, System.ComponentModel.INotifyPropertyChanged
public class ImageServiceLayer : BasicRasterLayer, ArcGIS.Desktop.Core.IMetadataInfo, IMetadataSource, ITableDefinitionQueries, System.ComponentModel.INotifyPropertyChanged
Remarks
The image service layer is a representation of an image service. The image service layer is drawn based on the ArcGIS.Core.CIM.CIMRasterColorizer
Example
Create an image service layer
{
string urlToUse =
@"http://imagery.arcgisonline.com/arcgis/services/LandsatGLS/GLS2010_Enhanced/ImageServer";
// Create an image service layer using the url for an image service.
//Note: Run within a QueuedTask
var isLayer = LayerFactory.Instance.CreateLayer(new Uri(urlToUse), map) as ImageServiceLayer;
}
Inheritance Hierarchy
System.Object
ArcGIS.Desktop.Framework.Contracts.PropertyChangedBase
ArcGIS.Desktop.Mapping.MapMember
ArcGIS.Desktop.Mapping.Layer
ArcGIS.Desktop.Mapping.BasicRasterLayer
ArcGIS.Desktop.Mapping.ImageServiceLayer
ArcGIS.Desktop.Mapping.ImageMosaicSubLayer
Requirements
Target Platforms: Windows 11 Home, Pro, Enterprise (64 bit)
ArcGIS Pro version: 3.0 or higher.
